Mobile Engineer - covering most of Hertfordshire, parts of Bedfordshire, Cambridgeshire & Essex
Mobile motorhome & caravan engineer Herts
fault finding and Repairs
Broken Brake Drum
Brake Shoe Linings Burnt Off
Actual Danger To Life
Unfortunately, newcomers to the world of caravanning were not informed by the seller of how to correctly hitch their caravan to their tow vehicle.
Actual Danger To Life
Brake Shoe Linings Burnt Off
Actual Danger To Life
As a consequence, they tied the breakaway cable too tight and when they drove away it tightened even more which pulled the brakes on and caused catastrophic damage and a realistic danger to life.
Brake Shoe Linings Burnt Off
Brake Shoe Linings Burnt Off
Brake Shoe Linings Burnt Off
As you can see from these photos, because the brakes were 'on' for a few miles the material of the brake shoes wore away down to bear metal which caused extreme overheating.
New Brake Parts Fitted
Braking System Now Safe
Brake Shoe Linings Burnt Off
Because the brake shoes metal linings were rubbing against the metal drums the heat was so immense that it cracked the drums, which as you can see in two of the top photos, part of each drum broke off.
Braking System Now Safe
Braking System Now Safe
Braking System Now Safe
Thankfully they contacted me before driving any further. I ordered and fitted brand new parts including a new drum on each side. This family are now safe to tow their much loved caravan.
Burnt Water Heater
Braking System Now Safe
Braking System Now Safe
If no water is inside your water heater, make sure it's turned OFF otherwise this could happen. Here you can see how burnt the water heater outer casing is, obviously it needed replacing. It's safer to always switch off anything relating to heat when not being used.
Fixing a fridge problem
Testing a new 'changeover' LPG regulator I just fitted
Testing a new 'changeover' LPG regulator I just fitted
After I checked why this fridge didn't work on mains electricity I traced the problem to a faulty element, which had to be replaced. When it initially failed it also blew a fuse in the rear circuit board of the fridge, so the fuse also had to be replaced
Testing a new 'changeover' LPG regulator I just fitted
Testing a new 'changeover' LPG regulator I just fitted
Testing a new 'changeover' LPG regulator I just fitted

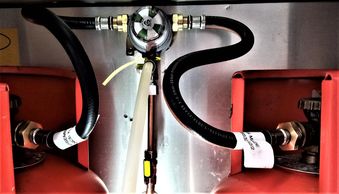

Whenever a new LPG regulator is replaced, gas tests MUST be done to ensure it's installed correctly and safely. This customer wanted to use two LPG cylinders so that if gas runs out of one, a very quick turn of the top dial allows gas to come from the other. I can easily convert a one cylinder system into a two.
Testing the rear of a Control Panel
Testing a new 'changeover' LPG regulator I just fitted
Testing the rear of a Control Panel
The contol panel, which amongst other things, is used to control hot water and heating, was discovered to be faulty after it was tested.
The fault was a data cable, which was replaced.
